Cable-Integrated Multi-Point Temperature Sensor SAN-Thermo®

Revolutionizing temperature measurement and management with production technology, new materials, IoT, and robotics! Maintenance-free at a low cost!
Key Device for IoT and M2M Network Construction

Sanyo Denki’s Unique Product、[SAN-Thermo]®is a ‘temperature-measuring cable’ born from the wire manufacturing process.
We embedded a temperature sensor (thermistor) inside a 5mm diameter cable, enabling simultaneous temperature measurement at multiple points.
The number of sensors can range from 1 to a maximum of 40 points, with cable lengths freely adjustable up to 100m. Additionally, regardless of the number of points or cable length, the cable diameter remains at 5mm.

Once installed, it allows continuous power and signal reception without the need for battery replacement, making it maintenance-free.
In terms of cost, it can be reduced compared to thermocouple and wireless types. We offer not only the cable alone but also set sales including the interface device and basic software.

Patent No. 6185684

Application Examples

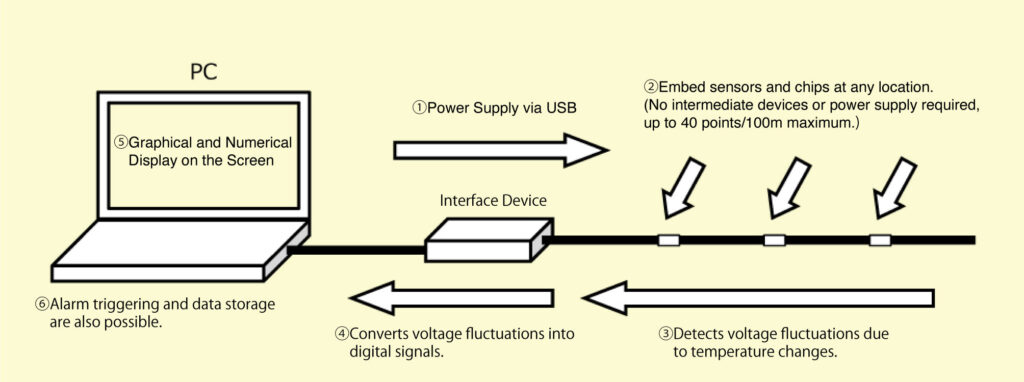

Schematic Diagram

Product Features

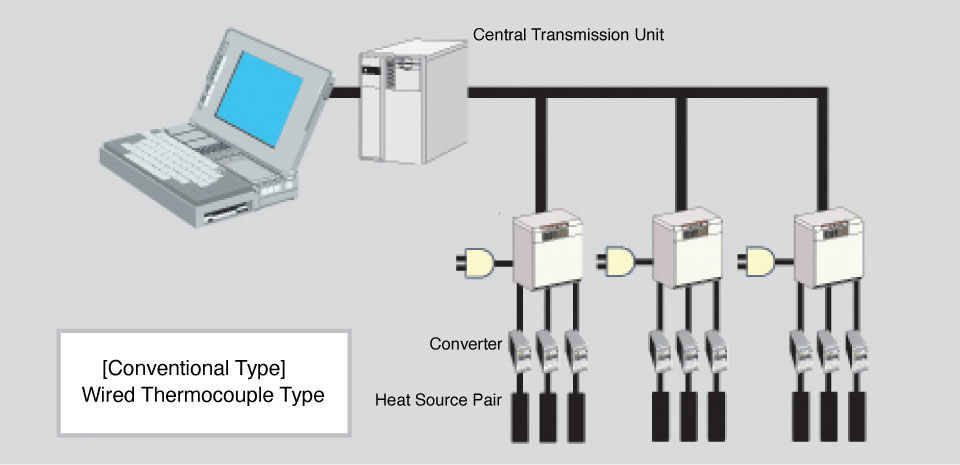

The conventional methods, such as connecting numerous temperature sensors wirelessly or networking multiple thermocouples through converters and transmission devices, faced challenges such as the complexity of installation and power supply work, the need for multiple wireless devices, and increased costs associated with thermocouple converters and transmission devices.

Sanseimo® by Sanyo Denki simplifies this process by connecting an interface device to a PC with basic software installed via USB and laying sensor-embedded cables at the measurement points. Unlike other methods, there is no need for wireless devices, transmission equipment, or power supply to the intermediate parts. This results in significant cost savings compared to wireless and thermocouple-based approaches.

  • Temperature sensor built into a thin 5mm cable. Slim and lightweight for easy installation without compromising aesthetics.
  • We offer customizable designs to meet your preferences for cable outer diameter, number of sensors, and cable length.”
  • When sold as a set, it allows continuous power and signal reception through the PC’s USB. With no need for power installation, battery replacement, or daily data collection tasks, maintenance is easy.
  • Due to the cable’s PVC sheath, it is resilient to harsh environments such as outdoors and low temperatures.
  • By connecting sensors other than thermistors, such as humidity, vibration, and gyro sensors, it can be versatile for various measurement applications. Collaborative development with customers is also possible.
  • Orders accepted from a single unit. Enables cost-effective implementation compared to thermocouple and wireless types.

Standard Specifications

  • Cable Outer Diameter: ≤ 5 mm
  • Number of Installed Sensors: ≤ 40 points
  • Laying Distance: ≤ 100 m
  • Measuring Temperature Range: -40°C to +105°C*1
  • Sensor Cable Installation Temperature Range: -40°C to +105°C*1
  • Interface Box Installation Temperature Range: 0°C to +60°C*2
  • Sensor Power Supply: Supplied via USB
  • Monitoring Function: Real-time/Logging Capable
  • Alarm Function: Adjustable High/Low Temperature Thresholds

*1:It is also possible to shift to the high-temperature side by changing the material, achieving compatibility from -25°C to +125°C. *2: Please consult us for special specifications if the temperature exceeds this range.
*The information in this brochure is current as of October 2017. Product specifications, model numbers, and all details are subject to change without notice. Thank you for your understanding.

For inquiries or to request materials,

f you have any inquiries or would like to request information about the Cable-Integrated Multi-Point Temperature Sensor Cable-Integrated Multi-Point Temperature Sensor SAN-Thermo®, please feel free to contact us.
